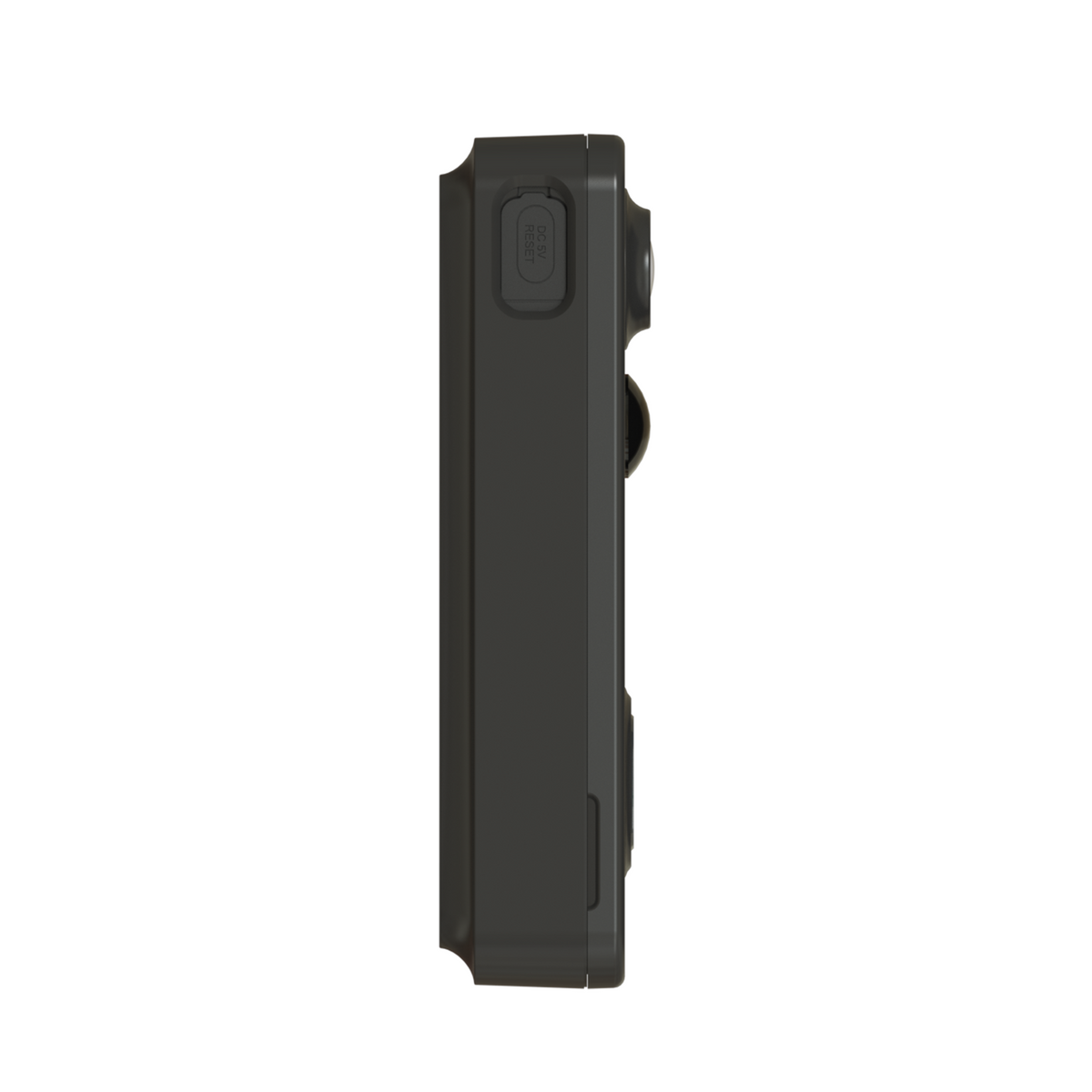

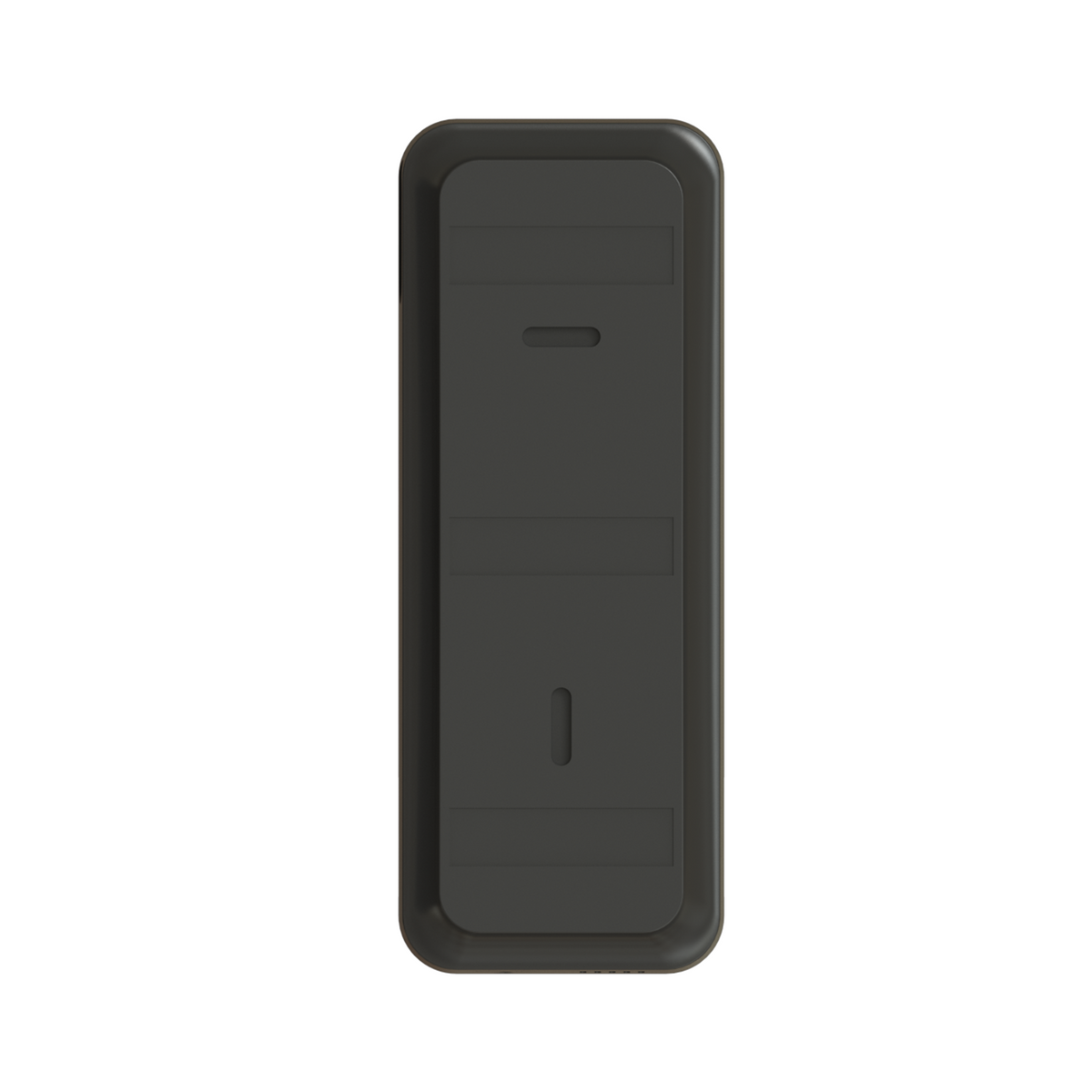

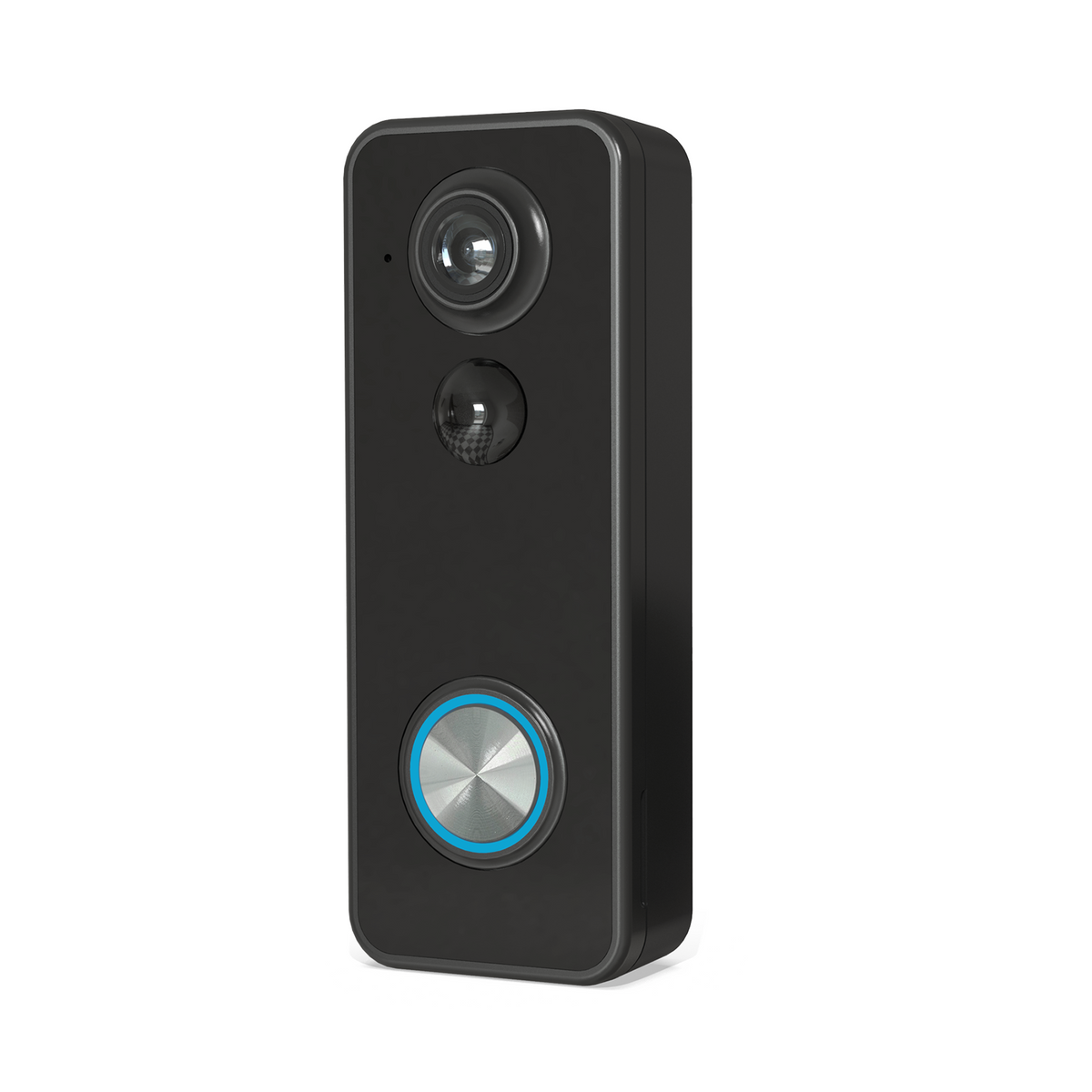

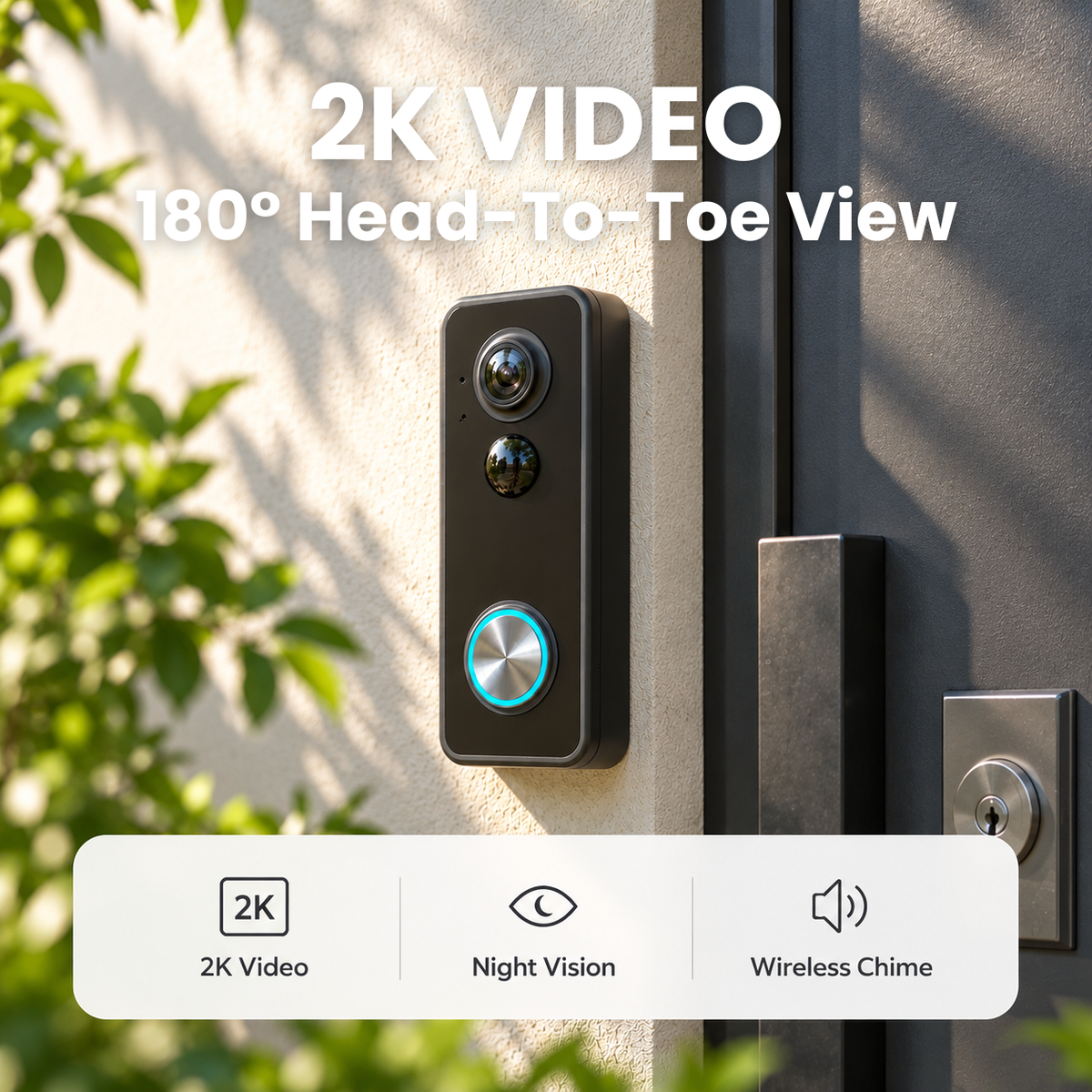

Bell J9 Plus Wireless Video Doorbell with 180° Head-to-Toe View
The SITERWELL Bell J9 Plus is a battery-powered wireless video doorbell with a 2K, 1728 × 1728 square view and a 180° field of view. The square frame is what makes the head-to-toe view possible — you see the visitor at the door and the space around their feet in the same shot, so a package left at the step does not fall outside the frame.

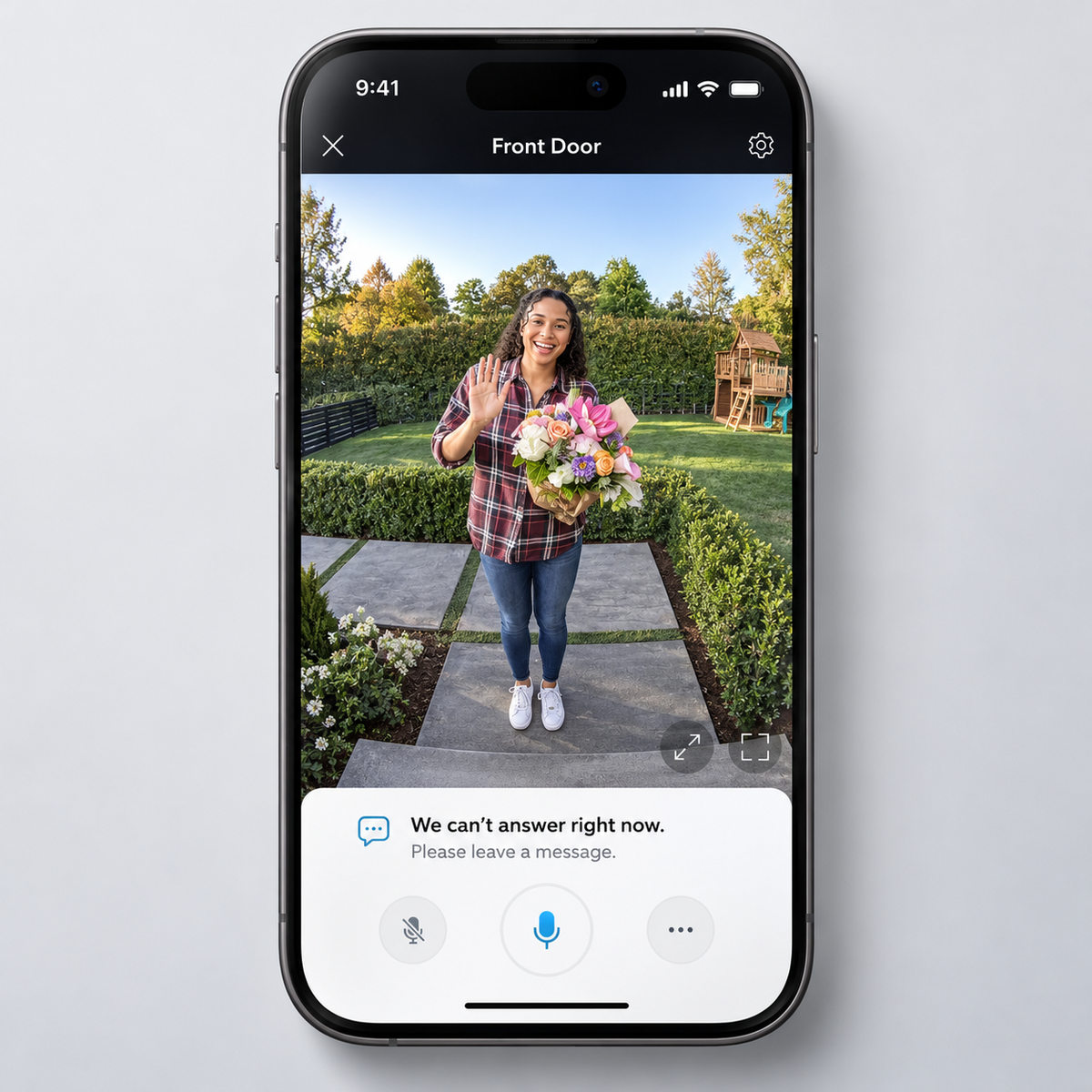

Because it runs on a rechargeable battery, there is no doorbell wiring to connect. Mount it at the door, pair it over Bluetooth, connect to a 2.4 GHz Wi-Fi network, and check the live view and alerts from your phone. Recordings can be stored on a microSD/TF card, and optional cloud storage is also available.
MicroSD/TF card is not included and must be purchased separately. Cloud storage is optional and not included. Battery life depends on activity and environmental conditions. 5 GHz Wi-Fi networks are not supported.
Technical Specifications
Specifications for the SITERWELL Bell J9 Plus wireless video doorbell.
Bell J9 Plus
Battery-powered wireless video doorbell
2K — 1728 × 1728 (3MP)

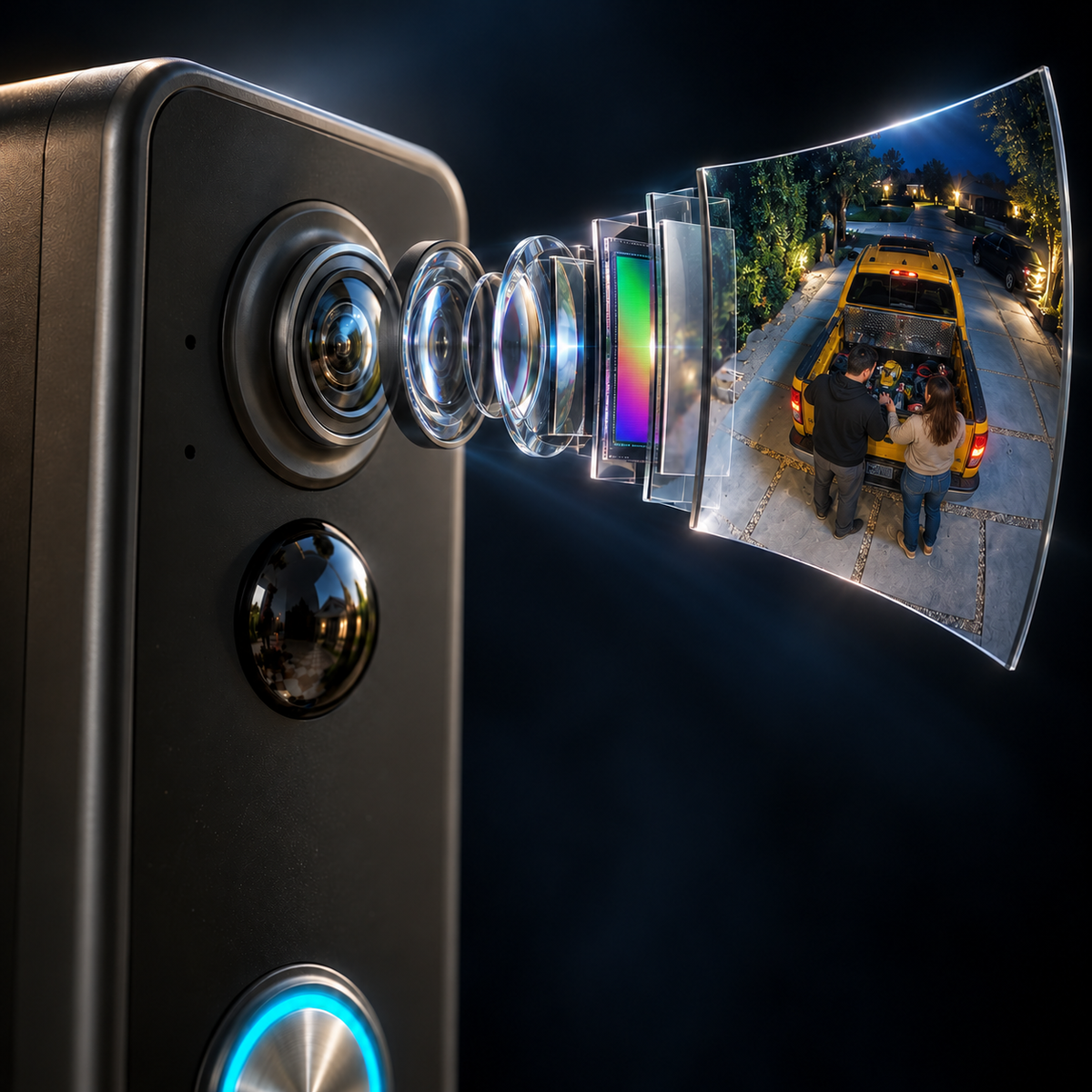

1/3.0-inch 3MP CMOS
180°

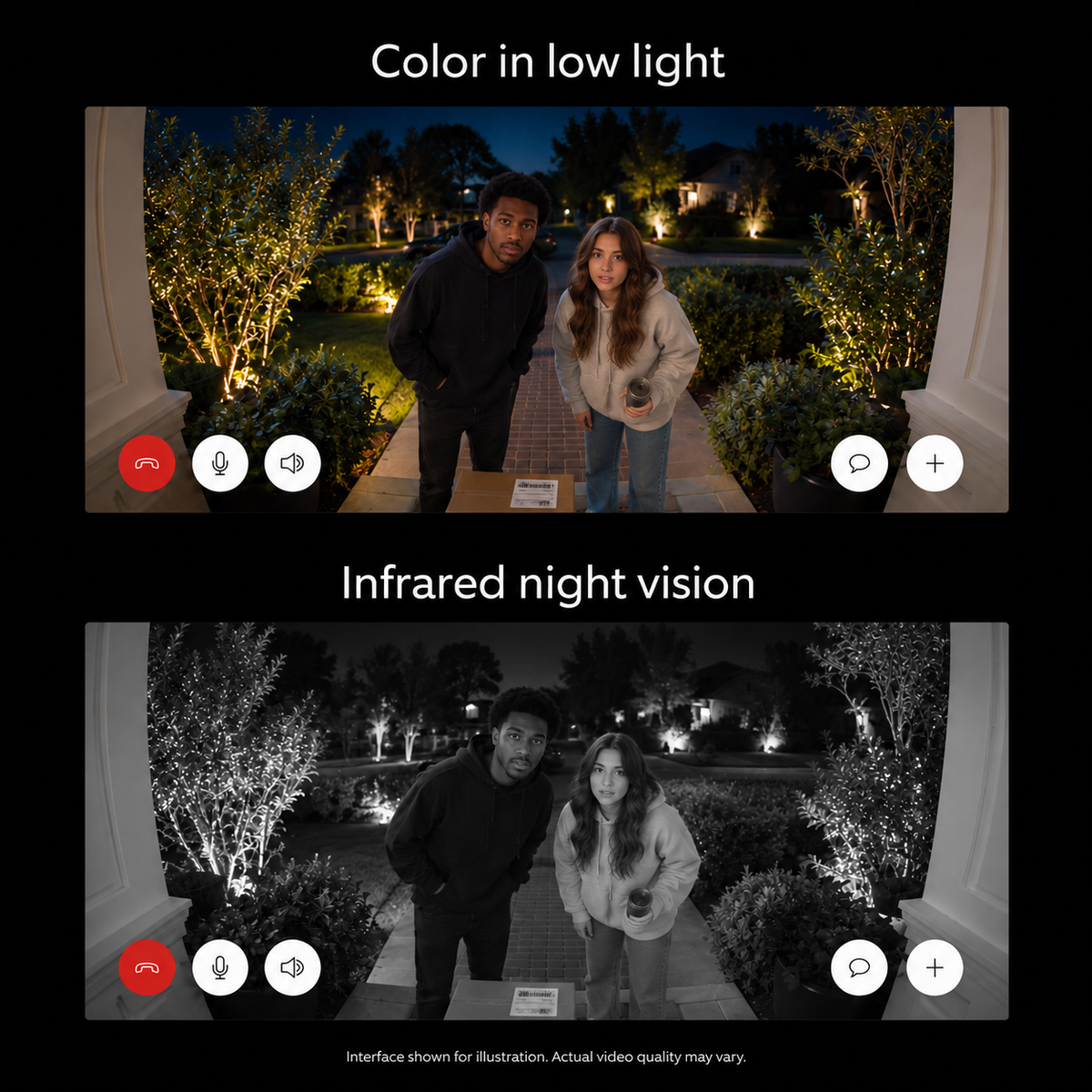

Up to 10 m (32.8 ft); automatic ICR — colour and black & white

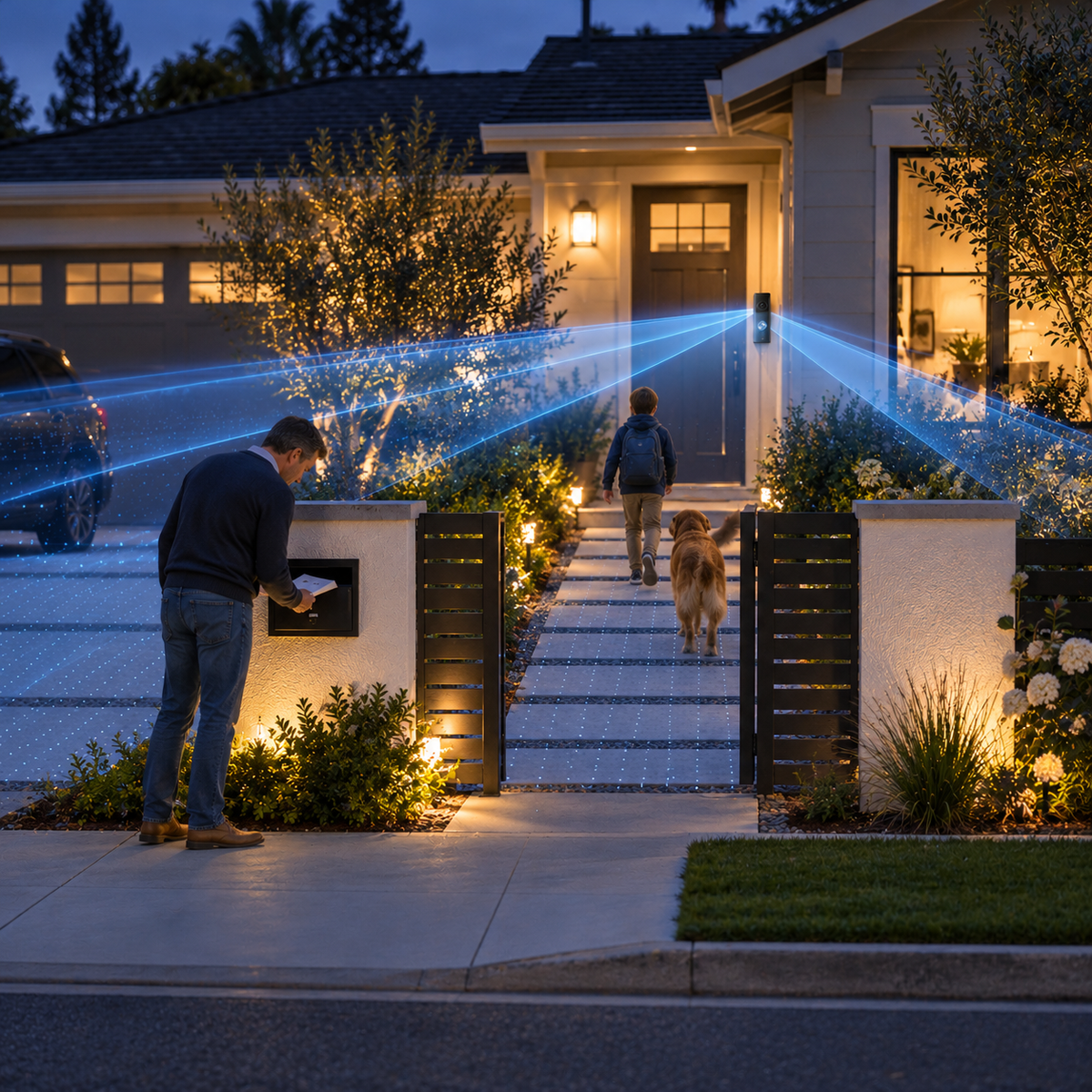

PIR human detection with adjustable sensitivity
Up to 5 m (about 16 ft) / 100°
Full-duplex two-way talk
5200 mAh rechargeable lithium battery
Approx. 2–3 months at about 10 activations per day; up to 6 months standby
2.4 GHz only (IEEE 802.11b/g/n/ax); 5 GHz not supported
Bluetooth 5.0
microSD/TF card up to 128 GB (card not included); optional cloud storage
H.264; 1–25 fps
DC 5V / 1A; max. 2 W
IP65
433 MHz wireless chime compatible
56.2 × 38 × 147.5 mm
Battery-powered and wireless — no doorbell wiring required
Frequently Asked Questions
Common questions about the SITERWELL Bell J9 Plus.
Does the Bell J9 Plus need existing doorbell wiring?
No. It is battery powered, so it can be mounted without connecting to doorbell wiring.
Which Wi-Fi band does it use?
It connects to 2.4 GHz Wi-Fi networks. 5 GHz networks are not supported. Bluetooth 5.0 is used for setup.
How long does the battery last?
About 2–3 months at roughly 10 activations a day, and up to 6 months on standby. Actual battery life depends on activity and temperature.
Can I record without a subscription?
Recording to a microSD/TF card up to 128 GB is supported. The card is not included and must be purchased separately. Cloud storage is available as an optional extra.
Can I talk to visitors?
Yes — full-duplex two-way audio lets you speak with visitors through the app.
Is it weather resistant?
It carries an IP65 rating, so it is suitable for outdoor placement at the door.
What field of view does it have?
180°, with a 1728 × 1728 square frame designed to cover head to toe.
